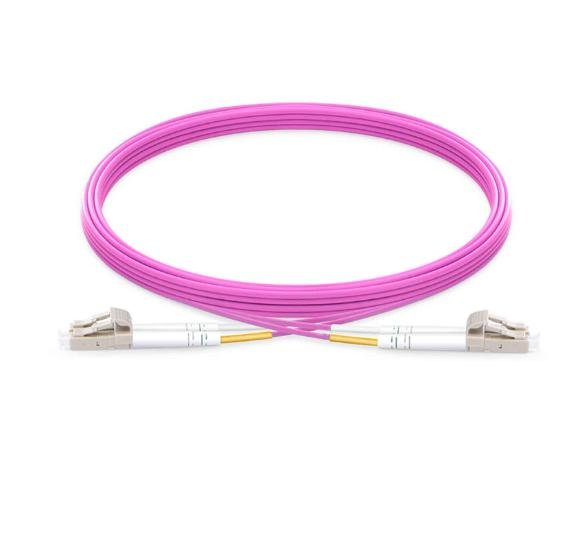

LC-LC/UPC Fiber Optic Patch Cord (OM4 Multimode Duplex)
| Item | HY-LCU-LCU-OM4-DX-2M-LSZH |
| Connector Type | LC/UPC Male, Duplex |
| Fiber Type | OM4 Multimode (Laser-Optimized) |
| Fiber Core/Cladding | 50/125µm |
| Bandwidth | 4700 MHz·km @ 850nm |
| Cable Structure | Duplex Zipcord, 2.0mm tight-buffered fiber |
| Jacket Material | LSZH (Low Smoke Zero Halogen), Magenta color (industry standard for OM4) |
| Operating Wavelength | 850nm / 1300nm |
| Typical Insertion Loss | ≤ 0.3 dB (LC-LC connection) |
| Typical Return Loss | ≥ 20 dB (Multimode UPC polish) |
| Max Attenuation | ≤ 2.3 dB/km @ 850nm; ≤ 0.6 dB/km @ 1300nm |
| 10G Ethernet Distance | Up to 550m @ 850nm |
| 40G/100G Ethernet Distance | Up to 150m @ 850nm |
| Operating Temperature | -20°C ~ +70°C |
| Compliance | TIA/EIA-568-C.2, IEC 60793, RoHS, REACH |
Key Features
- OM4 Laser-Optimized Multimode Fiber
- Designed for high-speed networks, supporting 10Gbps up to 550m, and 40G/100Gbps up to 150m at 850nm.
- Backward compatible with OM1/OM2/OM3 multimode fibers.
- LC/UPC Duplex Connectors
- Small form factor with ceramic ferrules, ideal for high-density patch panels and SFP/SFP+ transceivers.
- UPC polish ensures stable signal transmission and low insertion loss.
- 2.0mm LSZH Jacket
- Low Smoke Zero Halogen material releases minimal smoke and toxic gases when burned, ideal for indoor, public, and high-safety environments.
- Magenta (pink) color is the industry standard for OM4 multimode fiber, enabling quick identification.
- Duplex Construction
- Two independent fibers for separate transmit (Tx) and receive (Rx) signals, enabling full-duplex communication.
Typical Applications
- 40G/100G/400G data center interconnections (switches, servers, patch panels)
- Enterprise network backbones and horizontal cabling
- SFP+/QSFP+ transceiver connections for high-speed networks
- Environments requiring low-smoke, halogen-free cabling (e.g., hospitals, schools, commercial buildings)
