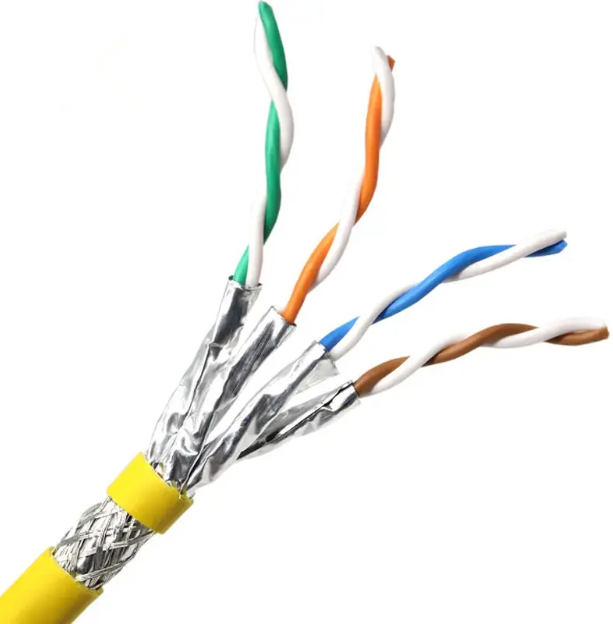

SFTP Cat8 Network Cable 2000Mhz
1. General Construction
| Item | HY-CAT8-AFTP |
| Cable Type | Category 8 S/FTP (Screened/Foiled Twisted Pair) |
| Conductor | Solid Bare Copper (Oxygen-Free Copper, OFC) / Stranded Bare Copper |
| AWG Size | 22AWG / 23AWG / 24AWG (standard options) |
| Pair Structure | 4 Twisted Pairs (8 Conductors) |
| Shielding | Individual foil shield (Foil per pair) + Overall braided shield (S/FTP) |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen) |
| Cable Color | Blue / Grey / Violet / Customized |
| Outer Diameter | ~7.5–8.5mm (varies by AWG and jacket type) |
2. Electrical & Performance Specifications
| Parameter | Standard Value |
| Frequency Bandwidth | Up to 2000 MHz (2GHz) |
| Data Rate | Supports 25GBASE-T / 40GBASE-T (IEEE 802.3bq) |
| Maximum Channel Length | 30 meters (for full 40Gbps performance) |
| Characteristic Impedance | 100 Ω ± 15 Ω at 1–2000 MHz |
| DC Resistance | ≤ 22 Ω/100m @ 20°C (24AWG) |
| Return Loss (RL) | Compliant with ANSI/TIA-568-C.2-1 & ISO/IEC 11801 Class I/II |
| Insertion Loss (IL) | Meets TIA-568-C.2-1 Cat8 requirements |
| NEXT / FEXT / ELFEXT | Cat8-level performance, compliant with ISO/IEC 11801 |
3. Compliance & Certifications
- Standards:
- ANSI/TIA-568-C.2-1 (Cat8)
- ISO/IEC 11801 (Class I/II, 2nd/3rd edition)
- IEC 61156-5, EN 50288-10-1
- IEEE 802.3bq (25G/40GBASE-T)
- Certifications: RoHS, CE, REACH, Fluke DSX-8000 Tested
- Flame Retardant: IEC 60332-1 / IEC 60332-3 (CM/CMR/LSZH grades)
4. Typical Applications
- Data center server-to-switch connections
- High-density 10G/25G/40G network environments
- Short-range high-speed structured cabling systems
- Enterprise backbone cabling for next-gen networks
- PoE++ (802.3bt) applications (up to 100W power delivery)
5. Key Features (for catalog bullet points)
✅ 40Gbps high-speed transmission at 2000MHz bandwidth
✅ S/FTP double shielding for superior EMI/RFI protection
✅ Bare copper conductor for stable signal and long-term performance
✅ LSZH/PVC jacket options for different installation scenarios
✅ Fully tested with Fluke DSX-8000 to meet Cat8 standards
✅ Supports PoE++ (802.3bt) power over Ethernet applications
