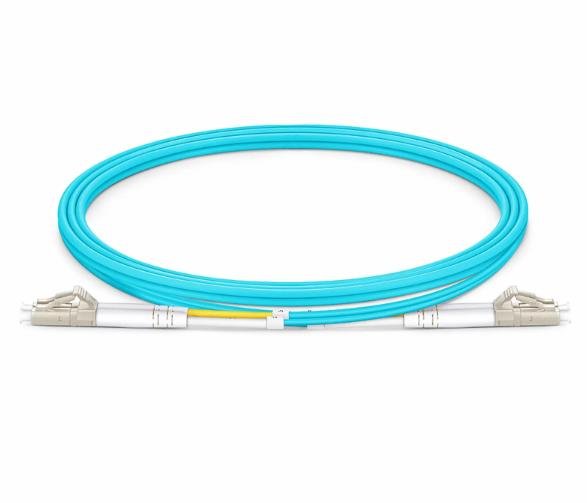

OM3 Multimode LC Duplex Fiber Patch Cable
| Item | HY-MM-LCU-LCU-OM3-DX |
| Connector Type | LC/UPC Male, Duplex (Standard/Short Boot) |
| Fiber Type | OM3 Multimode (Laser Optimized) |
| Fiber Core/Cladding | 50/125μm |
| Cable Structure | Duplex Zipcord, 2.0mm tight-buffered |
| Jacket Material | PVC (OFNR) / LSZH, Aqua color |
| Operating Wavelength | 850nm / 1300nm |
| Insertion Loss | ≤ 0.3dB |
| Return Loss | ≥ 30dB |
| 10G Distance @850nm | Up to 300m |
| Operating Temperature | -20°C ~ +70°C |
| Compliance | TIA/EIA, IEC, RoHS |
Key Features
- Laser-Optimized OM3 Fiber: Designed specifically for high-speed networks, supporting 10Gbps Ethernet up to 300 meters, and backward compatible with OM1/OM2 multimode fibers.
- LC Duplex Connectors: Small form factor connectors with ceramic ferrules, ideal for high-density patch panels and SFP/SFP+ transceiver ports.
- Standard Aqua Jacket: The distinctive aqua color is the industry standard for OM3 multimode fiber, making it easy to identify in mixed cabling environments.
- Durable Construction: Tight-buffered fiber with OFNR PVC or LSZH jacket provides excellent protection against physical stress, bending, and environmental factors.
- Bidirectional Communication: Duplex design includes two fibers for separate transmit (Tx) and receive (Rx) signals, enabling full-duplex operation.
Typical Applications
- 10Gbps/40Gbps/100Gbps data center interconnections
- Enterprise network backbone and horizontal cabling
- SFP/SFP+ transceiver connections for switches, servers, and routers
- High-density patch panel environments
