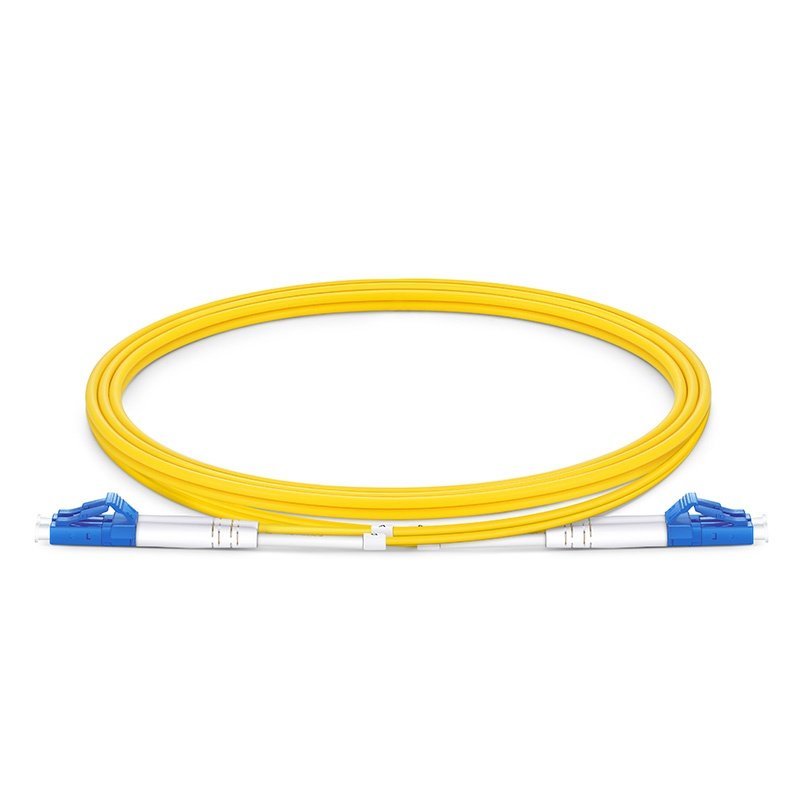

OS2 LC-LC Single Mode Duplex Fiber Patch Cable
| Item | HY-SM-LCU-LCU-DX |
| Connector Type | LC/UPC Male, Duplex, Short Boot |
| Fiber Type | OS2 Single Mode |
| Fiber Core/Cladding | 9/125µm |
| Cable Structure | Duplex, 2.0mm tight-buffered fiber |
| Jacket Material | PVC (OFNR, Flame Retardant) |
| Operating Wavelength | 1310nm / 1550nm |
| Typical Insertion Loss | ≤ 0.3 dB (LC/LC connection) |
| Typical Return Loss | ≥ 50 dB (UPC polish) |
| Operating Temperature | -20°C ~ +70°C |
| Compliance | IEC, TIA/EIA, RoHS Compliant |
Key Features
- OS2 Single Mode Fiber: Designed for long-distance, low-loss transmission, supporting 10Gbps+ rates. Ideal for data centers and carrier networks.
- LC/UPC Connectors: Small form factor for high-density cabling. UPC polish ensures low insertion loss and high return loss, optimized for digital signals.
- Short Boot Design: Reduces minimum bend radius and saves space, perfect for high-density patch panels.
- 2.0mm PVC Jacket: OFNR-rated flame retardant material, flexible and durable for indoor use.
- Duplex Construction: Contains two fibers for simultaneous transmit and receive (bidirectional communication).
Typical Applications
- Data center interconnections (switches, servers, patch panels)
- Telecom/operator equipment rooms
- Enterprise campus networks and FTTx deployments
- 10G/1G SFP/SFP+ transceiver connections
